• 1. Obtain SDL3 and GLAD 1. Получение SDL3 и GLAD

  Follow the guide to install and configure SDL3 and GLAD using CMake: Setting up SDL3 with find_package (MinGW). Следуйте руководству по установке и настройке SDL3 и GLAD с помощью CMake: Настройка SDL3 с помощью find_package (MinGW).

2. Obtain SDL3_image 3.4.4 2. Получение SDL3_image 3.4.4

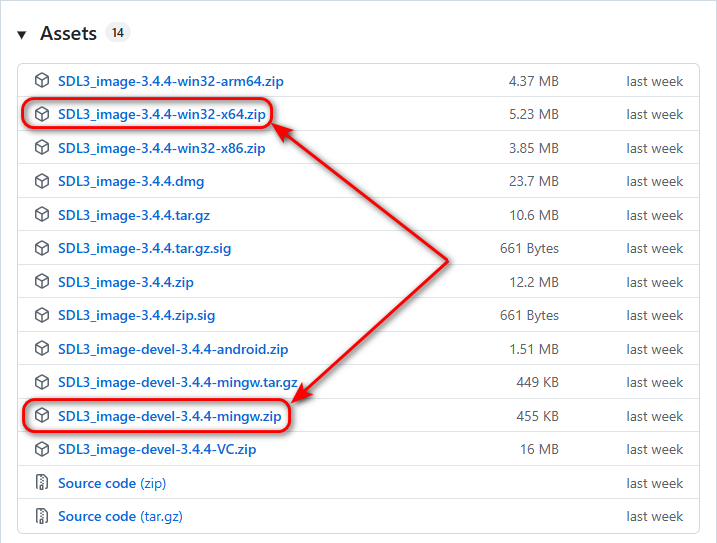

• Download two archives from the official SDL_image release page: Скачайте два архива со страницы официального релиза SDL_image:

• Extract the SDL3_image-devel-3.4.4-mingw.zip archive to the C:/libs/SDL3_image-devel-3.4.4-mingw folder. Распакуйте архив SDL3_image-devel-3.4.4-mingw.zip в папку C:/libs/SDL3_image-devel-3.4.4-mingw.
• Move the headers and libraries so the structure is SDL3_image-devel-3.4.4-mingw/include, etc: Переместите заголовочные файлы и библиотеки так, чтобы структура папок была SDL3_image-devel-3.4.4-mingw/include и т. д.:

• Extract the SDL3_image-3.4.4-win32-x64.zip archive so the path is exactly C:/libs/SDL3_image-3.4.4-win32-x64: Распакуйте архив SDL3_image-3.4.4-win32-x64.zip так, чтобы путь был именно C:/libs/SDL3_image-3.4.4-win32-x64:


3. Add SDL3 to Environment Variables (Path) 3. Добавление SDL3 в переменные среды (Path)

To ensure your applications can find the SDL3.dll file at runtime, you should add the following path to the Path variable in your User variables section: Чтобы приложения могли находить SDL3.dll файл при запуске, добавьте следующий путь в переменную Path в разделе Переменные среды пользователя:

4. Project Structure and Assets 4. Структура проекта и ресурсы

texture-sdl3-opengl-mingw-c/
├── CMakeLists.txt
├── assets/images/
│   └── right-arrow.png
└── src/
    └── main.c

texture-sdl3-opengl-mingw-cpp/
├── CMakeLists.txt
├── assets/images/
│   └── right-arrow.png
└── src/
    └── main.cpp

5. CMake Configuration 5. Конфигурация CMake

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(texture-sdl3-opengl-mingw-c)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
set(SDL3_image_DIR "C:/libs/SDL3_image-devel-3.4.4-mingw/lib/cmake/SDL3_image")

find_package(SDL3 REQUIRED)
find_package(SDL3_image REQUIRED)

add_executable(app)

target_include_directories(app PRIVATE "C:/libs/glad-0.1.36/opengl-3.3/include")

target_sources(app
PRIVATE
    src/main.c
    "C:/libs/glad-0.1.36/opengl-3.3/src/glad.c"
)

# Copy the assets folder to the dist folder
if(EXISTS "${CMAKE_SOURCE_DIR}/assets")
    add_custom_command(TARGET app POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
                "${CMAKE_SOURCE_DIR}/assets"
                "$<TARGET_FILE_DIR:app>/assets"
        COMMENT "Copying assets directory"
    )
endif()

target_link_libraries(app PRIVATE SDL3_image::SDL3_image SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(texture-sdl3-opengl-mingw-cpp)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
set(SDL3_image_DIR "C:/libs/SDL3_image-devel-3.4.4-mingw/lib/cmake/SDL3_image")

find_package(SDL3 REQUIRED)
find_package(SDL3_image REQUIRED)

add_executable(app)

target_include_directories(app PRIVATE "C:/libs/glad-0.1.36/opengl-3.3/include")

target_sources(app
PRIVATE
    src/main.cpp
    "C:/libs/glad-0.1.36/opengl-3.3/src/glad.c"
)

# Copy the assets folder to the dist folder
if(EXISTS "${CMAKE_SOURCE_DIR}/assets")
    add_custom_command(TARGET app POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
                "${CMAKE_SOURCE_DIR}/assets"
                "$<TARGET_FILE_DIR:app>/assets"
        COMMENT "Copying assets directory"
    )
endif()

target_link_libraries(app PRIVATE SDL3_image::SDL3_image SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

6. Source Code (OpenGL 3.3 Texture Mapping) 6. Исходный код (Текстурирование в OpenGL 3.3)

Copy and paste the following code into the src/main.c (or src/main.cpp) file:

Скопируйте и вставьте следующее содержимое в файл src/main.c (или src/main.cpp):

src/main.c (or src/main.cpp)

#define SDL_MAIN_USE_CALLBACKS 1

#include <glad/glad.h>

#include <SDL3/SDL.h>
#include <SDL3/SDL_main.h>
#include <SDL3_image/SDL_image.h>

static SDL_Window *window = NULL;
static SDL_GLContext glContext = NULL;
static GLuint shaderProgram;
static GLuint VAO, VBO, EBO;
static GLuint textureID;

const char *vertexShaderSource =
    "#version 330 core\n"
    "layout (location = 0) in vec3 aPosition;\n"
    "layout (location = 1) in vec2 aTexCoord;\n"
    "out vec2 vTexCoord;\n"
    "void main() {\n"
    "   gl_Position = vec4(aPosition, 1.0);\n"
    "   vTexCoord = vec2(aTexCoord.x, 1.0 - aTexCoord.y);\n"
    "}";

const char *fragmentShaderSource =
    "#version 330 core\n"
    "precision mediump float;\n"
    "out vec4 FragColor;\n"
    "in vec2 vTexCoord;\n"
    "uniform sampler2D ourTexture;\n"
    "void main() {\n"
    "   FragColor = texture(ourTexture, vTexCoord);\n"
    "}";

SDL_AppResult SDL_AppInit(void **appstate, int argc, char *argv[])
{
    if (!SDL_Init(SDL_INIT_VIDEO))
        return SDL_APP_FAILURE;

    SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 3);

    window = SDL_CreateWindow("SDL3_image OpenGL", 380, 380, SDL_WINDOW_OPENGL);
    if (!window)
        return SDL_APP_FAILURE;

    glContext = SDL_GL_CreateContext(window);

    // Load standard Desktop GLAD mapping
    if (!gladLoadGLLoader((GLADloadproc)SDL_GL_GetProcAddress))
    {
        return SDL_APP_FAILURE;
    }

    SDL_GL_SetSwapInterval(1);

    glEnable(GL_BLEND);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

    // Setup Geometry
    float vertices[] = {
        0.5f, 0.5f, 0.0f, 1.0f, 1.0f,
        0.5f, -0.5f, 0.0f, 1.0f, 0.0f,
        -0.5f, -0.5f, 0.0f, 0.0f, 0.0f,
        -0.5f, 0.5f, 0.0f, 0.0f, 1.0f
    };
    unsigned int indices[] = { 0, 1, 3, 1, 2, 3 };

    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glGenBuffers(1, &EBO);

    glBindVertexArray(VAO);
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBO);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);

    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void *)0);
    glEnableVertexAttribArray(0);
    glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void *)(3 * sizeof(float)));
    glEnableVertexAttribArray(1);
    glBindVertexArray(0);

    // Simple Shader Compilation
    GLuint vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);

    GLuint fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);

    shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);

    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    // Load Image file via SDL3_image directly into memory surface
    const char *texturePath = "assets/images/right-arrow.png";
    SDL_Surface *surface = IMG_Load(texturePath);
    if (!surface)
    {
        SDL_Log("Image loading failed: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    // Convert to standardized ABGR8888 (Matches GL_RGBA memory layout perfectly)
    SDL_Surface *optimizedSurface = SDL_ConvertSurface(surface, SDL_PIXELFORMAT_ABGR8888);
    SDL_DestroySurface(surface); // Free the unoptimized source copy immediately

    if (!optimizedSurface)
    {
        SDL_Log("Surface conversion failed: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    // Convert pixels to an OpenGL Texture Object
    glGenTextures(1, &textureID);
    glBindTexture(GL_TEXTURE_2D, textureID);

    // Set wrapping/filtering options
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);

    // Upload using strict GL_RGBA formatting (Since it is safely converted)
    glTexImage2D(
        GL_TEXTURE_2D,
        0,
        GL_RGBA,
        optimizedSurface->w,
        optimizedSurface->h,
        0,
        GL_RGBA,
        GL_UNSIGNED_BYTE,
        optimizedSurface->pixels);
    glGenerateMipmap(GL_TEXTURE_2D);

    // Free optimized surface copy from CPU RAM
    SDL_DestroySurface(optimizedSurface);

    return SDL_APP_CONTINUE;
}

SDL_AppResult SDL_AppEvent(void *appstate, SDL_Event *event)
{
    if (event->type == SDL_EVENT_QUIT)
        return SDL_APP_SUCCESS;
    return SDL_APP_CONTINUE;
}

SDL_AppResult SDL_AppIterate(void *appstate)
{
    glClearColor(0.392f, 0.392f, 0.392f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    glUseProgram(shaderProgram);
    glBindTexture(GL_TEXTURE_2D, textureID);
    glBindVertexArray(VAO);
    glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);
    glBindVertexArray(0);

    SDL_GL_SwapWindow(window);
    return SDL_APP_CONTINUE;
}

void SDL_AppQuit(void *appstate, SDL_AppResult result)
{
    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteBuffers(1, &EBO);
    glDeleteProgram(shaderProgram);
    SDL_GL_DestroyContext(glContext);
    SDL_DestroyWindow(window);
}

7. Opening the Project in IDEs 7. Открытие проекта в IDE

Open the CMakeLists.txt file in CLion or Qt Creator. CMake will handle the rest. Откройте файл CMakeLists.txt в CLion или Qt Creator. CMake позаботится об остальном.

8. Automation Scripts (.bat) 8. Скрипты автоматизации (.bat)

You can open the project folder in Sublime Text 4 (or Notepad++). Create the following .bat scripts in the project root directory to automate the configuration, building, and running of your application:

Вы можете открыть папку проекта в Sublime Text 4 (или Notepad++). Создайте следующие .bat скрипты в корневой директории проекта для автоматизации конфигурации, сборки и запуска вашего приложения:

cmake -G "MinGW Makefiles" -S . -B dist/exe

cd dist\exe
cmake --build .
cd ..\..

dist\exe\app

To build and launch the application, run these scripts in the terminal in the following order:

Чтобы собрать и запустить приложение, выполните эти скрипты в терминале в следующем порядке:

config-exe
build-exe
run-exe

9. Source Code & Downloads 9. Исходный код и загрузки

You can download the complete configured project as a ZIP archive or explore the source code directly on GitHub: Вы можете скачать готовую настроенную сборку проекта в виде ZIP-архива или изучить исходный код прямо на GitHub:
