1. Obtain SDL 3.4.8 1. Получение SDL 3.4.8

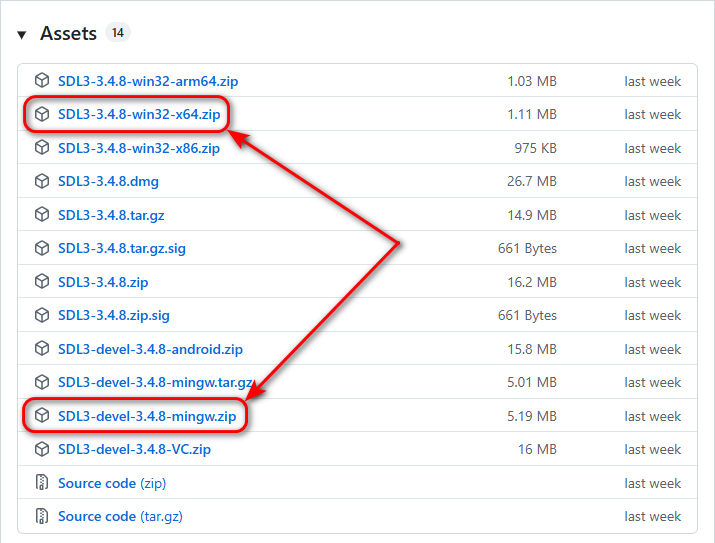

• Download two archives from the official release page: Скачайте два архива со страницы официального релиза:

• Extract the SDL3-devel-3.4.8-mingw.zip archive to the C:/libs/SDL3-devel-3.4.8-mingw folder. Распакуйте архив SDL3-devel-3.4.8-mingw.zip в папку C:/libs/SDL3-devel-3.4.8-mingw.
• Move the headers and libraries so the structure is SDL3-devel-3.4.8-mingw/include, etc: Переместите заголовочные файлы и библиотеки так, чтобы структура папок была SDL3-devel-3.4.8-mingw/include и т. д.:

• Extract the SDL3-3.4.8-win32-x64.zip archive so the path is exactly C:/libs/SDL3-3.4.8-win32-x64: Распакуйте архив SDL3-3.4.8-win32-x64.zip так, чтобы путь был именно C:/libs/SDL3-3.4.8-win32-x64:


2. Add SDL3 to Environment Variables (Path) 2. Добавление SDL3 в переменные среды (Path)

To ensure your applications can find the SDL3.dll file at runtime, you should add the following path to the Path variable in your User variables section: Чтобы приложения могли находить SDL3.dll файл при запуске, добавьте следующий путь в переменную Path в разделе Переменные среды пользователя:

3. Obtain GLAD 3. Получение GLAD

• Go to the GLAD Web Generator and use the following settings: Перейдите в веб-генератор GLAD и используйте следующие настройки:
  • Language: C/C++
  • Specification: OpenGL
  • API gl: Version 3.3
  • Profile: Core
  • Options: Generate a loader
• Click Generate, download the glad.zip archive, and extract it to C:/libs/glad-0.1.36/opengl-3.3 (you can find the GLAD version at the bottom of the generator page). Нажмите Generate, скачайте архив glad.zip и распакуйте его в C:/libs/glad-0.1.36/opengl-3.3 (версию GLAD можно найти в нижней части страницы генератора).
• Ensure the following path structure: Убедитесь в следующей структуре пути:


  C:/libs/glad-0.1.36/opengl-3.3/
  ├── include/
  │   ├── glad/glad.h
  │   └── KHR/khrplatform.h
  └── src/
      └── glad.c

3. Project Structure 3. Структура проекта

triangle-sdl3-opengl-c/
├── CMakeLists.txt
└── src/
    └── main.c

triangle-sdl3-opengl-cpp/
├── CMakeLists.txt
└── src/
    └── main.cpp

4. Project Configuration (CMakeLists.txt) 4. Конфигурация проекта (CMakeLists.txt)

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(triangle-sdl3-opengl-c)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
find_package(SDL3 REQUIRED)

add_executable(app)

target_include_directories(app PRIVATE "C:/libs/glad-0.1.36/opengl-3.3/include")

target_sources(app
PRIVATE
    "C:/libs/glad-0.1.36/opengl-3.3/src/glad.c"
    src/main.c
)

target_link_libraries(app PRIVATE SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(triangle-sdl3-opengl-cpp)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
find_package(SDL3 REQUIRED)

add_executable(app)

target_include_directories(app PRIVATE "C:/libs/glad-0.1.36/opengl-3.3/include")

target_sources(app
PRIVATE
    "C:/libs/glad-0.1.36/opengl-3.3/src/glad.c"
    src/main.cpp
)

target_link_libraries(app PRIVATE SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

5. Source Code 5. Исходный код

Copy and paste the following code into the src/main.c (or src/main.cpp) file:

Скопируйте и вставьте следующее содержимое в файл src/main.c (или src/main.cpp):

main.c / main.cpp

#include <glad/glad.h>
#include <SDL3/SDL.h>
#include <SDL3/SDL_main.h>

const char *vertexShaderSource =
    "#version 330 core\n"
    "layout (location = 0) in vec3 aPosition;\n"
    "void main()\n"
    "{\n"
    "    gl_Position = vec4(aPosition, 1.0);\n"
    "}\n";

const char *fragmentShaderSource =
    "#version 330 core\n"
    "precision mediump float;\n"
    "out vec4 fragColor;\n"
    "void main()\n"
    "{\n"
    "    fragColor = vec4(0.0f, 1.0f, 0.0f, 1.0f);\n"
    "}\n";

int main(int argc, char *argv[])
{
    if (!SDL_Init(SDL_INIT_VIDEO))
        return -1;

    SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 3);

    SDL_Window *window = SDL_CreateWindow("SDL3 OpenGL Triangle", 380, 380, SDL_WINDOW_OPENGL);
    SDL_GLContext glContext = SDL_GL_CreateContext(window);

    if (!gladLoadGLLoader((GLADloadproc)SDL_GL_GetProcAddress))
        return -1;

    SDL_GL_SetSwapInterval(1); // Turn on vertical sync

    // Simple Shader Compilation
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);

    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);

    unsigned int shaderProgram = glCreateProgram();
    glAttachShader(shaderProgram, vertexShader);
    glAttachShader(shaderProgram, fragmentShader);
    glLinkProgram(shaderProgram);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    float vertices[] = {
        -0.5f, -0.5f, 0.0f,
        0.5f, -0.5f, 0.0f,
        0.0f, 0.5f, 0.0f
    };

    unsigned int VBO, VAO;
    glGenVertexArrays(1, &VAO);
    glGenBuffers(1, &VBO);
    glBindVertexArray(VAO);
    glBindBuffer(GL_ARRAY_BUFFER, VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void *)0);
    glEnableVertexAttribArray(0);

    bool running = true;
    SDL_Event event;
    while (running)
    {
        while (SDL_PollEvent(&event))
        {
            if (event.type == SDL_EVENT_QUIT)
                running = false;
        }

        glClearColor(0.1f, 0.1f, 0.1f, 1.0f);
        glClear(GL_COLOR_BUFFER_BIT);

        glUseProgram(shaderProgram);
        glBindVertexArray(VAO);
        glDrawArrays(GL_TRIANGLES, 0, 3);

        SDL_GL_SwapWindow(window);
    }

    glDeleteVertexArrays(1, &VAO);
    glDeleteBuffers(1, &VBO);
    glDeleteProgram(shaderProgram);
    SDL_GL_DestroyContext(glContext);
    SDL_DestroyWindow(window);
    SDL_Quit();
    return 0;
}

6. Opening the Project in IDEs 6. Открытие проекта в IDE

Open the CMakeLists.txt file in CLion or Qt Creator. CMake will handle the rest. Откройте файл CMakeLists.txt в CLion или Qt Creator. CMake позаботится об остальном.

7. Automation Scripts (.bat) 7. Скрипты автоматизации (.bat)

You can open the project folder in Sublime Text 4 (or Notepad++). Create the following .bat scripts in the project root directory to automate the configuration, building, and running of your application:

Вы можете открыть папку проекта в Sublime Text 4 (или Notepad++). Создайте следующие .bat скрипты в корневой директории проекта для автоматизации конфигурации, сборки и запуска вашего приложения:

cmake -G "MinGW Makefiles" -S . -B dist/exe

cd dist\exe
cmake --build .
cd ..\..

dist\exe\app

8. Alternative: SDL3 Callback System 8. Альтернатива: Система Callbacks в SDL3

SDL3 introduces a modern callback-based approach. Instead of a while loop, you define specific functions that SDL calls when needed. This is the preferred method for Web (Emscripten) and Mobile platforms.

В SDL3 представлен современный подход на основе обратных вызовов (callbacks). Вместо цикла while вы определяете специальные функции, которые SDL вызывает по мере необходимости. Это рекомендуемый метод для Web (Emscripten) и мобильных платформ.

main.c / main.cpp (Callback Version)

#define SDL_MAIN_USE_CALLBACKS 1

#include <glad/glad.h>
#include <SDL3/SDL.h>
#include <SDL3/SDL_main.h>

const char *vertexShaderSource =
    "#version 330 core\n"
    "layout (location = 0) in vec3 aPosition;\n"
    "void main()\n"
    "{\n"
    "    gl_Position = vec4(aPosition, 1.0);\n"
    "}\n";

const char *fragmentShaderSource =
    "#version 330 core\n"
    "precision mediump float;\n"
    "out vec4 fragColor;\n"
    "void main()\n"
    "{\n"
    "    fragColor = vec4(0.0f, 1.0f, 0.0f, 1.0f);\n"
    "}\n";

// Global application state to persist data between callbacks
struct AppState {
    SDL_Window *window;
    SDL_GLContext glContext;
    unsigned int shaderProgram;
    unsigned int VAO, VBO;
} state;

// Initialization callback
SDL_AppResult SDL_AppInit(void **appstate, int argc, char *argv[])
{
    if (!SDL_Init(SDL_INIT_VIDEO))
        return SDL_APP_FAILURE;

    SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 3);

    state.window = SDL_CreateWindow("SDL3 OpenGL Triangle", 380, 380, SDL_WINDOW_OPENGL);
    if (!state.window)
        return SDL_APP_FAILURE;

    state.glContext = SDL_GL_CreateContext(state.window);
    if (!state.glContext)
        return SDL_APP_FAILURE;

    if (!gladLoadGLLoader((GLADloadproc)SDL_GL_GetProcAddress))
        return SDL_APP_FAILURE;

    SDL_GL_SetSwapInterval(1); // Turn on vertical sync

    // Simple Shader Compilation
    unsigned int vertexShader = glCreateShader(GL_VERTEX_SHADER);
    glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
    glCompileShader(vertexShader);

    unsigned int fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
    glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
    glCompileShader(fragmentShader);

    state.shaderProgram = glCreateProgram();
    glAttachShader(state.shaderProgram, vertexShader);
    glAttachShader(state.shaderProgram, fragmentShader);
    glLinkProgram(state.shaderProgram);
    glDeleteShader(vertexShader);
    glDeleteShader(fragmentShader);

    float vertices[] = {
        -0.5f, -0.5f, 0.0f,
         0.5f, -0.5f, 0.0f,
         0.0f,  0.5f, 0.0f
    };

    glGenVertexArrays(1, &state.VAO);
    glGenBuffers(1, &state.VBO);
    glBindVertexArray(state.VAO);
    glBindBuffer(GL_ARRAY_BUFFER, state.VBO);
    glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(float), (void *)0);
    glEnableVertexAttribArray(0);

    return SDL_APP_CONTINUE;
}

// Event handling callback (called automatically per event by SDL3)
SDL_AppResult SDL_AppEvent(void *appstate, SDL_Event *event)
{
    if (event->type == SDL_EVENT_QUIT) {
        return SDL_APP_SUCCESS; // Stops the application cleanly
    }
    return SDL_APP_CONTINUE;
}

// Main loop iteration callback (called repeatedly)
SDL_AppResult SDL_AppIterate(void *appstate)
{
    glClearColor(0.1f, 0.1f, 0.1f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    glUseProgram(state.shaderProgram);
    glBindVertexArray(state.VAO);
    glDrawArrays(GL_TRIANGLES, 0, 3);

    SDL_GL_SwapWindow(state.window);

    return SDL_APP_CONTINUE;
}

// Cleanup callback (called automatically when application exits)
void SDL_AppQuit(void *appstate, SDL_AppResult result)
{
    glDeleteVertexArrays(1, &state.VAO);
    glDeleteBuffers(1, &state.VBO);
    glDeleteProgram(state.shaderProgram);
    SDL_GL_DestroyContext(state.glContext);
    SDL_DestroyWindow(state.window);
    SDL_Quit();
}

9. Source Code & Downloads 9. Исходный код и загрузки

You can download the complete configured project as a ZIP archive or explore the source code directly on GitHub: Вы можете скачать готовую настроенную сборку проекта в виде ZIP-архива или изучить исходный код прямо на GitHub:
