• 1. Obtain SDL3 and GLAD 1. Получение SDL3 и GLAD

  Follow the guide to install and configure SDL3 and GLAD using CMake: Setting up SDL3 with find_package (MinGW). Следуйте руководству по установке и настройке SDL3 и GLAD с помощью CMake: Настройка SDL3 с помощью find_package (MinGW).

2. Obtain SDL3_mixer 3.2.2 2. Получение SDL3_mixer 3.2.2

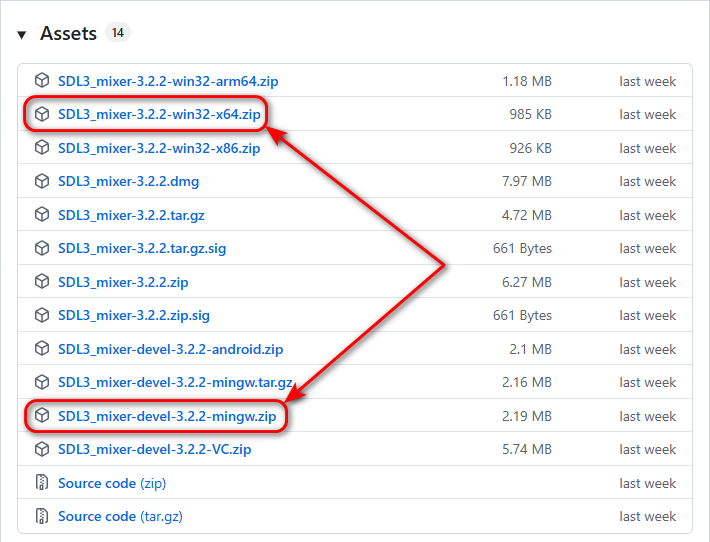

• Download two archives from the official SDL_mixer release page: Скачайте два архива со страницы официального релиза SDL_mixer:

• Extract the SDL3_mixer-devel-3.2.2-mingw.zip archive to the C:/libs/SDL3_mixer-devel-3.2.2-mingw folder. Распакуйте архив SDL3_mixer-devel-3.2.2-mingw.zip в папку C:/libs/SDL3_mixer-devel-3.2.2-mingw.
• Move the headers and libraries so the structure is SDL3_mixer-devel-3.2.2-mingw/include, etc: Переместите заголовочные файлы и библиотеки так, чтобы структура папок была SDL3_mixer-devel-3.2.2-mingw/include и т. д.:

• Extract the SDL3_mixer-3.2.2-win32-x64.zip archive so the path is exactly C:/libs/SDL3_mixer-3.2.2-win32-x64: Распакуйте архив SDL3_mixer-3.2.2-win32-x64.zip так, чтобы путь был именно C:/libs/SDL3_mixer-3.2.2-win32-x64:


3. Add SDL3_mixer to Environment Variables (Path) 3. Добавление SDL3_mixer в переменные среды (Path)

To ensure your applications can find the SDL3_mixer.dll file at runtime along with its decoding backends, add the following path to the Path variable in your User variables section: Чтобы приложения могли находить файл SDL3_mixer.dll и встроенные декодеры при запуске, добавьте следующий путь в переменную Path в разделе Переменные среды пользователя:

4. Obtain cglm 4. Получение cglm

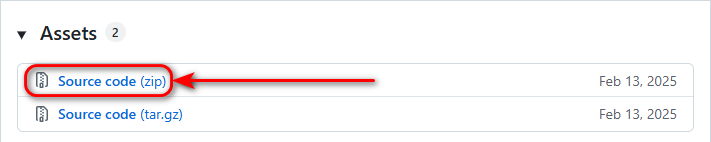

• Download the source cglm archive from the official cglm release page: Скачайте архив с исходным кодом со страницы официального релиза cglm:

• Extract the Source code (zip) archive to the C:/libs/cglm-0.9.6 folder: Распакуйте архив Source code (zip) в папку C:/libs/cglm-0.9.6:


5. Project Structure and Assets 5. Структура проекта и ресурсы

audio-sdl3-mixer-opengl-mingw-c/
├── CMakeLists.txt
├── assets/audio/
│   └── Picked Coin Echo 2.wav
│   └── Winds Of Stories.ogg
└── src/
    └── main.c

audio-sdl3-mixer-opengl-mingw-cpp/
├── CMakeLists.txt
├── assets/audio/
│   └── Picked Coin Echo 2.wav
│   └── Winds Of Stories.ogg
└── src/
    └── main.cpp

6. CMake Configuration 6. Конфигурация CMake

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(audio-sdl3-mixer-opengl-mingw-c)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
set(SDL3_mixer_DIR "C:/libs/SDL3_mixer-devel-3.2.2-mingw/lib/cmake/SDL3_mixer")

find_package(SDL3 REQUIRED)
find_package(SDL3_mixer REQUIRED)

add_executable(app)

target_sources(app PRIVATE
    C:/libs/glad-0.1.36/opengl-3.3/src/glad.c
    src/main.c
)

target_include_directories(app PRIVATE C:/libs/glad-0.1.36/opengl-3.3/include)

# Copy the assets folder to the dist folder
if(EXISTS "${CMAKE_SOURCE_DIR}/assets")
    add_custom_command(TARGET app POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
                "${CMAKE_SOURCE_DIR}/assets"
                "$<TARGET_FILE_DIR:app>/assets"
        COMMENT "Copying assets directory"
    )
endif()

target_link_libraries(app PRIVATE SDL3_mixer::SDL3_mixer SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

set(CMAKE_BUILD_TYPE "Debug")
cmake_minimum_required(VERSION 3.21)
project(audio-sdl3-mixer-opengl-mingw-cpp)

set(SDL3_DIR "C:/libs/SDL3-devel-3.4.8-mingw/lib/cmake/SDL3")
set(SDL3_mixer_DIR "C:/libs/SDL3_mixer-devel-3.2.2-mingw/lib/cmake/SDL3_mixer")

find_package(SDL3 REQUIRED)
find_package(SDL3_mixer REQUIRED)

add_executable(app)

target_sources(app PRIVATE
    C:/libs/glad-0.1.36/opengl-3.3/src/glad.c
    src/main.cpp
)

target_include_directories(app PRIVATE C:/libs/glad-0.1.36/opengl-3.3/include)

# Copy the assets folder to the dist folder
if(EXISTS "${CMAKE_SOURCE_DIR}/assets")
    add_custom_command(TARGET app POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
                "${CMAKE_SOURCE_DIR}/assets"
                "$<TARGET_FILE_DIR:app>/assets"
        COMMENT "Copying assets directory"
    )
endif()

target_link_libraries(app PRIVATE SDL3_mixer::SDL3_mixer SDL3::SDL3)
target_link_options(app PRIVATE -mconsole)

7. Source Code 7. Исходный код

Copy and paste the following code into the src/main.c (or src/main.cpp) file. Рress Space to play the sound effect manually):

Скопируйте и вставьте следующее содержимое в файл src/main.c (или src/main.cpp). Нажмите Пробел для ручного воспроизведения звукового эффекта:

#define SDL_MAIN_USE_CALLBACKS 1 // Use the callbacks instead of main()

#include <glad/glad.h>
#include <SDL3/SDL.h>
#include <SDL3/SDL_main.h>
#include <SDL3_mixer/SDL_mixer.h>

static SDL_Window *window = NULL;
static SDL_GLContext glContext;

static MIX_Mixer *mixer = NULL;
static MIX_Audio *backgroundMusic = NULL;
static MIX_Audio *soundEffect = NULL;
static MIX_Track *musicTrack = NULL;
static MIX_Track *sfxTrack = NULL;

static const size_t canvasWidth = 430;
static const size_t canvasHeight = 430;

// This function runs once at startup
SDL_AppResult SDL_AppInit(void **appState, int argc, char *argv[])
{
    if (!SDL_Init(SDL_INIT_VIDEO | SDL_INIT_AUDIO))
    {
        SDL_Log("Couldn't initialize SDL: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    // Initialize Mixer 3 subsystem
    if (!MIX_Init())
    {
        SDL_Log("Couldn't initialize SDL_mixer: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    // Create the central Mixer Device
    mixer = MIX_CreateMixerDevice(SDL_AUDIO_DEVICE_DEFAULT_PLAYBACK, NULL);
    if (!mixer)
    {
        SDL_Log("Mixer creation failed: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 3);

    const char *title = "SDL3_mixer OpenGL";
    window = SDL_CreateWindow(title, canvasWidth, canvasHeight, SDL_WINDOW_OPENGL);
    if (!window)
    {
        SDL_Log("Couldn't create the window: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    glContext = SDL_GL_CreateContext(window);
    if (!glContext)
    {
        SDL_Log("Couldn't create the glContext: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    SDL_GL_SetSwapInterval(1); // Turn on vertical sync

    if (!gladLoadGLLoader((GLADloadproc)SDL_GL_GetProcAddress))
    {
        SDL_Log("Failed to initialize OpenGL function pointers");
        return SDL_APP_FAILURE;
    }

    glClearColor(0.15f, 0.15f, 0.18f, 1.0f);

    // Load Audio Objects (using 'true' to cache data in memory)
    backgroundMusic = MIX_LoadAudio(mixer, "assets/audio/Winds Of Stories.ogg", true);
    if (!backgroundMusic)
    {
        SDL_Log("Failed to load music: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    soundEffect = MIX_LoadAudio(mixer, "assets/audio/Picked Coin Echo 2.wav", true);
    if (!soundEffect)
    {
        SDL_Log("Failed to load sound effect: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    // Allocate dedicated playback tracks
    musicTrack = MIX_CreateTrack(mixer);
    sfxTrack = MIX_CreateTrack(mixer);
    if (!musicTrack || !sfxTrack)
    {
        SDL_Log("Failed to create playback tracks");
        return SDL_APP_FAILURE;
    }

    // Setup and stream background music infinitely
    MIX_SetTrackAudio(musicTrack, backgroundMusic);
    MIX_SetTrackLoops(musicTrack, -1); // -1 loops infinitely, 0 disables looping
    MIX_PlayTrack(musicTrack, -1);

    return SDL_APP_CONTINUE;
}

// This function runs when a new event occurs
SDL_AppResult SDL_AppEvent(void *appState, SDL_Event *event)
{
    switch (event->type)
    {
        case SDL_EVENT_QUIT:
            return SDL_APP_SUCCESS;
        case SDL_EVENT_KEY_DOWN:
            if (event->key.key == SDLK_SPACE)
            {
                // Instantly bind and fire the one-shot sound effect (0 additional loops)
                MIX_SetTrackAudio(sfxTrack, soundEffect);
                MIX_PlayTrack(sfxTrack, 0);
            }
            break;
        default:
            break;
    }
    return SDL_APP_CONTINUE;
}

// This function runs once per frame
SDL_AppResult SDL_AppIterate(void *appState)
{
    glClear(GL_COLOR_BUFFER_BIT);

    // Context rendering logic goes here (OpenGL 3.3 pipeline)

    SDL_GL_SwapWindow(window);
    return SDL_APP_CONTINUE;
}

// This function runs once at shutdown
void SDL_AppQuit(void *appState, SDL_AppResult result)
{
    /*
       In SDL_mixer 3, MIX_Quit() handles garbage collection, freeing
       all mixer devices, loaded audio chunks, and track configurations automatically.
    */
    MIX_Quit();

    SDL_GL_DestroyContext(glContext);
    SDL_DestroyWindow(window);
    SDL_Quit();
}

8. Opening the Project in IDEs 8. Открытие проекта в IDE

Open the CMakeLists.txt file in CLion or Qt Creator. CMake will handle the configuration automatically. Откройте файл CMakeLists.txt в CLion или Qt Creator. CMake позаботится об остальном конфигурационном процессе автоматически.

9. Automation Scripts (.bat) 9. Скрипты автоматизации (.bat)

You can open the project folder in Sublime Text 4. Create the following .bat scripts in the project root directory to automate building and running:

Вы можете открыть папку проекта в Sublime Text 4. Создайте следующие .bat скрипты в корневой директории проекта для автоматизации сборки и запуска:

cmake -G "MinGW Makefiles" -S . -B dist/exe

cd dist\exe
cmake --build .
cd ..\..

dist\exe\app

To build and launch the application, run these scripts in the terminal in the following order:

Чтобы собрать и запустить приложение, выполните эти скрипты в терминале в следующем порядке:

config-exe
build-exe
run-exe

10. Source Code & Downloads 10. Исходный код и загрузки

You can download the complete configured project as a ZIP archive or explore the source code directly on GitHub: Вы можете скачать готовую настроенную сборку проекта в виде ZIP-архива или изучить исходный код прямо на GitHub:
